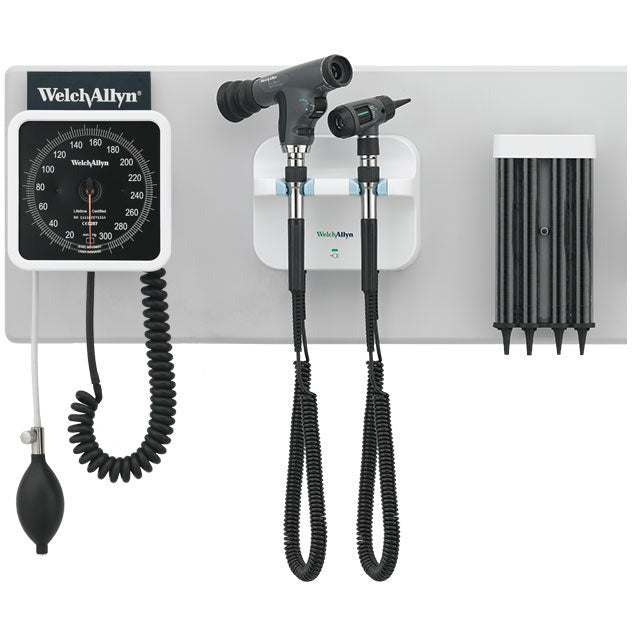

Welch Allyn GS 777 Wall Unit - PanOptic Ophthalmoscope & MacroView Otoscope with an Aneroid Sphygmomanometer

Green Series™ 777 Wall Transformer

• Help reduce facility cost with a more energy efficient product
• Help reduce risk of cross contamination by reducing contact with no on/off switch
• Help improve work flow with contoured handles that automatically turn on/off
• Quickly and easily upgrade from the Welch Allyn 767 Wall Transformer to the GS 777 Wall Transformer

23810 | MacroView™ Otoscope

• 30% greater magnification and twice the field of view of a conventional otoscope give a large, almost complete view of the tympanic membrane.
• Focusing wheel enabling you to zoom in or out on the area in view without the need to move the otoscope, compensating for both the practitioner's vision and variable length of the patient's ear canal.
• Better clarity and definition of landmarks than a conventional otoscope.
• The Halogen HPX™ lamp provides light output for true tissue colour and consistent, long-lasting performance.
• Fibre optics produce a ring of cool light with no reflections or obstructions for glare free viewing and easier examination.
• Specula ejector for hygeinic touch-free disposal of used speculae.
• Insufflation port for manipulation of the tympanic membrane.
• A sealed system for pneumatic otoscopy and accurate diagnosis of otitis media.
• Variable illumination strength via the handle rheostat dial.

Halogen + Fibre Optics
360° ring of light allows a completely unobstructed view in true tissue colour.

Rheostat Control
Vary the power of illumination with the smooth turn of a dial.

Wide-angle Viewing Lens
With twice the field of view of a conventional otoscope.

Insufflation port
Attach an insufflation bulb to test the mobility of the tympanic membrane via pneumatic otoscopy.

Focus Wheel
Turn to smoothly focus without the need to move the device.

Specula Ejector
Twist the Tip Grip to fasten or eject specula.

80820 | PanOptic™ Ophthalmoscope

• 5X larger view of the fundus - 25° field of view as opposed to 5° from a regular ophthalmoscope.
• 26% increase in magnification makes retinal details clearer and easier to see.
• Halogen light for true tissue colour and consistent, long-lasting performance.
• Axial PointSource™ optics produce a shadow-free spotlight, easier entry into undilated pupils.
• 6 apertures:
  • Micro - allows quick entry into small, undilated pupils.
  • Small - provides excellent view of fundus through an undilated pupil.
  • Large - general examination of the eye through dilated pupil.
  • Slit - used to determine levels of lesions and tumors.
  • Cobalt blue - used with flourescein dye to view small lesions, abrasions and foreign objects on the cornea.
  • Red-Free filter - filters out red light for easy identification of veins, arteries and nerve fibers.
• Dynamic focus - smoothly and precisely adjust the focus from -25 to +20 diopters, adjustable via easy-to-reach focussing wheel.
• Patient eyecup comfortably establishes and maintains proper viewing distance and screens out ambient light.
• Greater working distance and ergonomic design for maximum comfort and ease of use.
• Variable illumination strength via the handle rheostat dial.

Rheostat Control
Vary the power of illumination with the smooth turn of a dial.

Aperture Selection Disc
Switch easily between 6 apertures via a disc on the head.

Six Apertures
A wide range of practical apertures to select from.

DYnamic focus
Focus on the fundus, cornea, iris and other ocular structures.

5X Larger Field of view
25 degree field of view compared to 5 degrees on a regular ophthalmoscope.

Narrow beam entry point
Easier entry into undilated pupils compared to a standard ophthalmoscope (left).

Aneroid Sphygmomanometer

• Recessed, laser-engraved dial face with high-contrast pointer provides certified accuracy to reduce errors and improve patient care
• Life time calibration warranty reduces cost of ownership
