Welch Allyn 97204-VSM Portable 3.5v Elite Diagnostic Set

The rechargeable version of the best-selling 97200-BI, the Welch Allyn 97205-VSM is an excellent value lithium-ion powered diagnostic sets.
The set consists of:

• 1x Diagnostic otoscope with throat illuminator
• 1x Coaxial ophthalmoscope
• 1x Lithium-ion rechargeable battery handle
• 1x Hard carry case
• Includes 3 LumiView adult-sized specula & 2 paediatric sized specula.

20000 | Diagnostic Otoscope

• The Halogen HPX™ lamp provides light output for true tissue colour and consistent, long-lasting performance.
• Fibre optics project cool light to the distal tip with no reflections or obstructions for superior views of the tympanic membrane.
• The wide-angle viewing lens allows for instrumentation under magnification.
• Insufflation port for manipulation of the tympanic membrane.
• A sealed system for pneumatic otoscopy and accurate diagnosis of otitis media.
• Variable illumination strength via the handle rheostat dial.
• Throat illuminator provides light via a handy built-in penlight.

Halogen + Fibre Optics
Allows a completely unobstructed view in true tissue colour.

Rheostat Control
Vary the power of illumination with the smooth turn of a dial.

Wide-angle Viewing Lens
With easy access for cleaning.

Insufflation port
Attach an insufflation bulb to test the mobility of the tympanic membrane via pneumatic otoscopy.

Throat Illuminator
Two part head includes a built in penlight for direct illumination.

11720 | Coaxial Ophthalmoscope

• Halogen light for true tissue colour and consistent, long-lasting performance.
• The coaxial optics produce a shadow-free spotlight, easier entry into undilated pupils and a larger field of view compared to standard ophthalmoscopes.
• 6 apertures:
  • Micro - allows quick entry into small, undilated pupils.
  • Small - provides excellent view of fundus through an undilated pupil.
  • Large - general examination of the eye through dilated pupil.
  • Fixation - graduated cross-hairs for measuring eccentric fixation or locating lesions.
  • Slit - used to determine levels of lesions and tumors.
  • Cobalt blue - used with flourescein dye to view small lesions, abrasions and foreign objects on the cornea.
• 2 filters can be used in conjunction with any of the above apertures:
  • Red-Free filter - filters out red light for easy identification of veins, arteries and nerve fibers.
  • Polarising filter - virtually eliminates corneal reflection.
• 28 focusing lenses with a range of -25 to +40 diopters, adjustable via easy-to-reach maywheel.
• Rubber brow-rest prevents scratching of eyeglasses.
• Variable illumination strength via the handle rheostat dial.

Rheostat Control
Vary the power of illumination with the smooth turn of a dial.

Aperture Selection Disc
Switch easily between 6 apertures via a disc on the head.

Six Apertures
A wide range of practical apertures to select from.

LENS Selection Disc
Focus on the fundus, cornea, iris and other ocular structures.

Two Filters
Red-free or polarising filter can be used in tandem with any aperture.

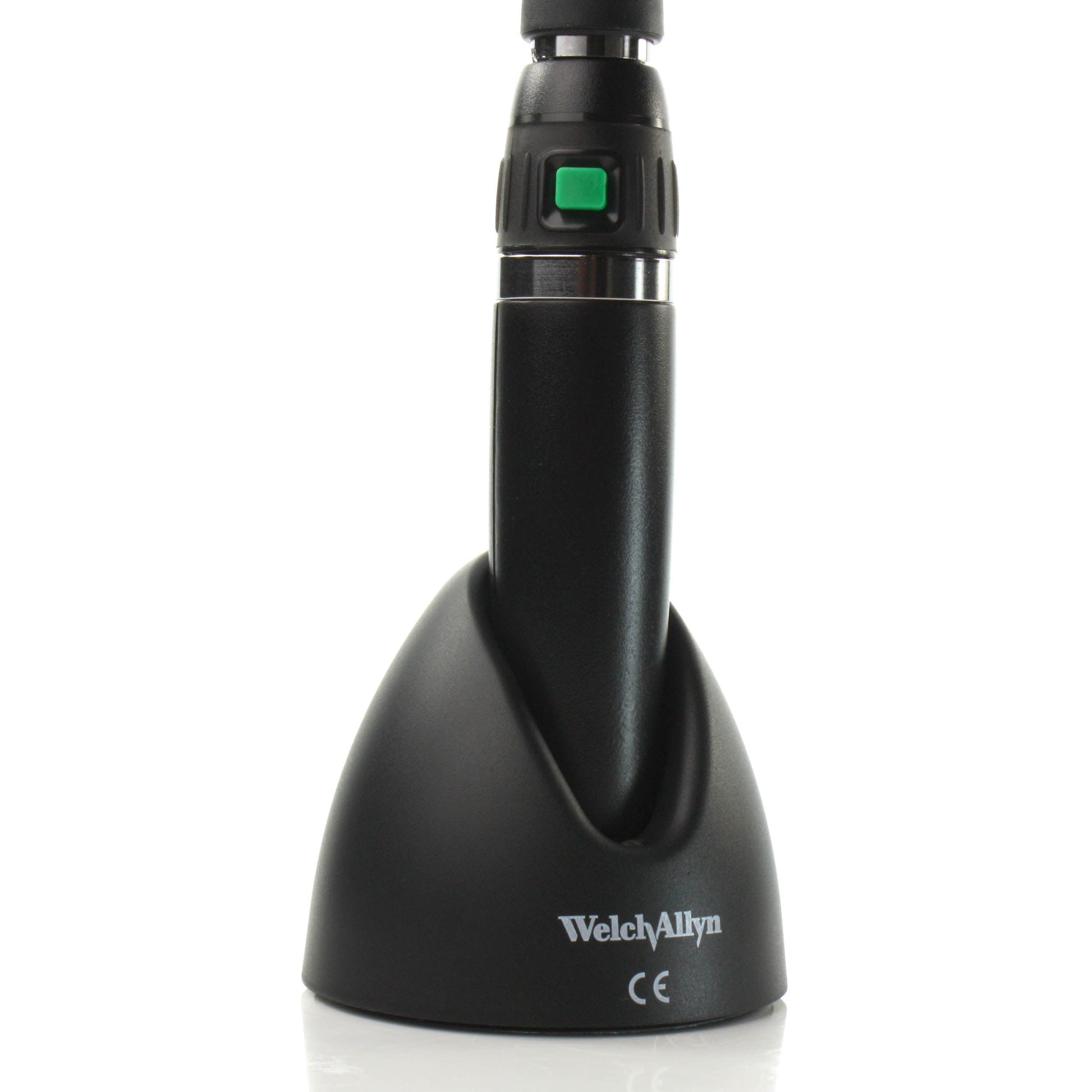

71904 | Lithium Ion Rechargeable Handle

• 120 minutes of on-time per charge, twice that of standard NiCad handles.
• Half the weight of traditional 3.5V handles.
• Low battery LED indicates when charge is required.

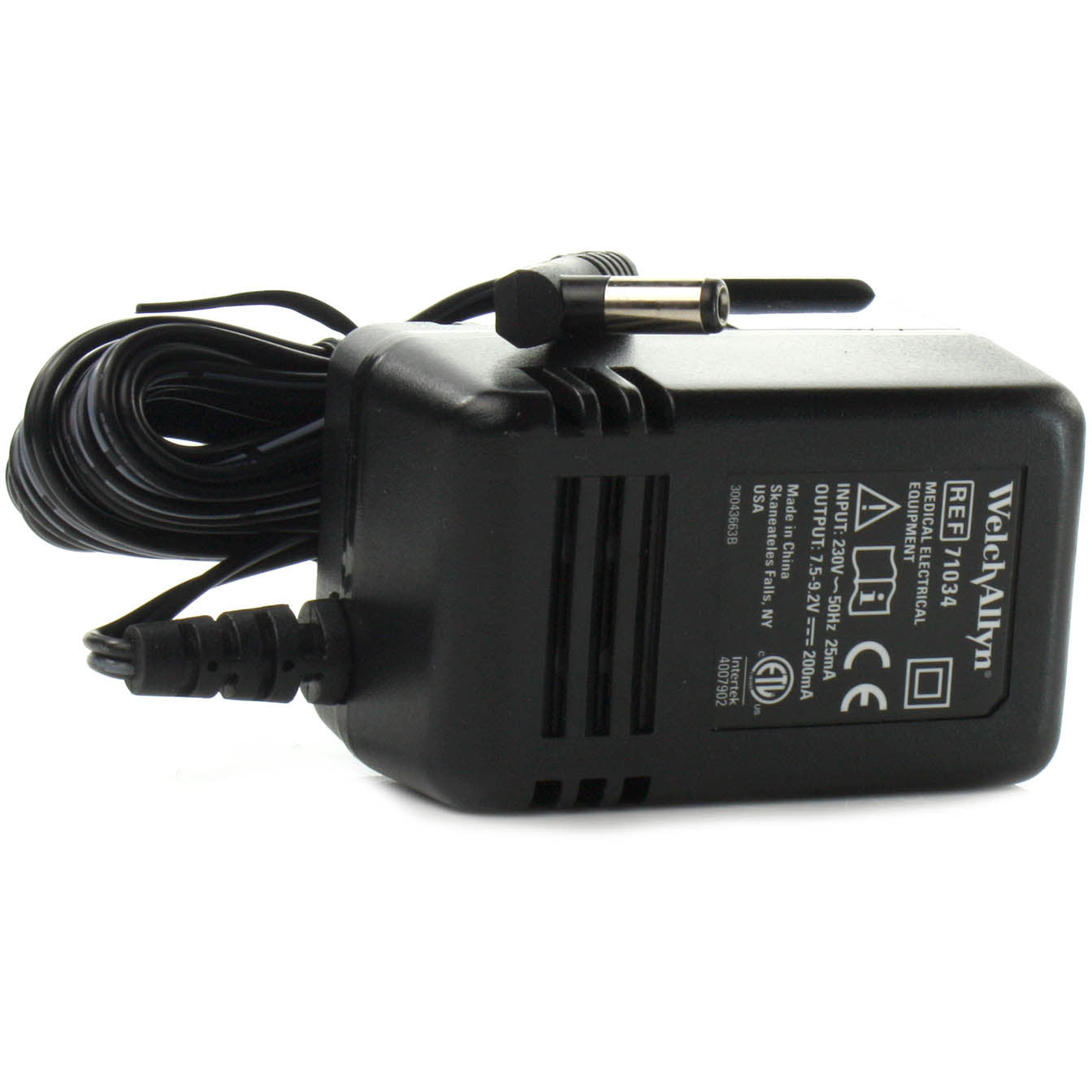

• Complete with attractive base unit charger and transformer.
• Fits all Welch Allyn 3.5v instrument heads.

Easy Attachment
Align cutouts with lugs, press and twist 90° to fit. Reverse procedure to remove.

Rheostat Control
Smoothly control the applied power with the easy grip dial.

Rechargeable power
Powered by lithium ion rechargeable handle. Charger included.
