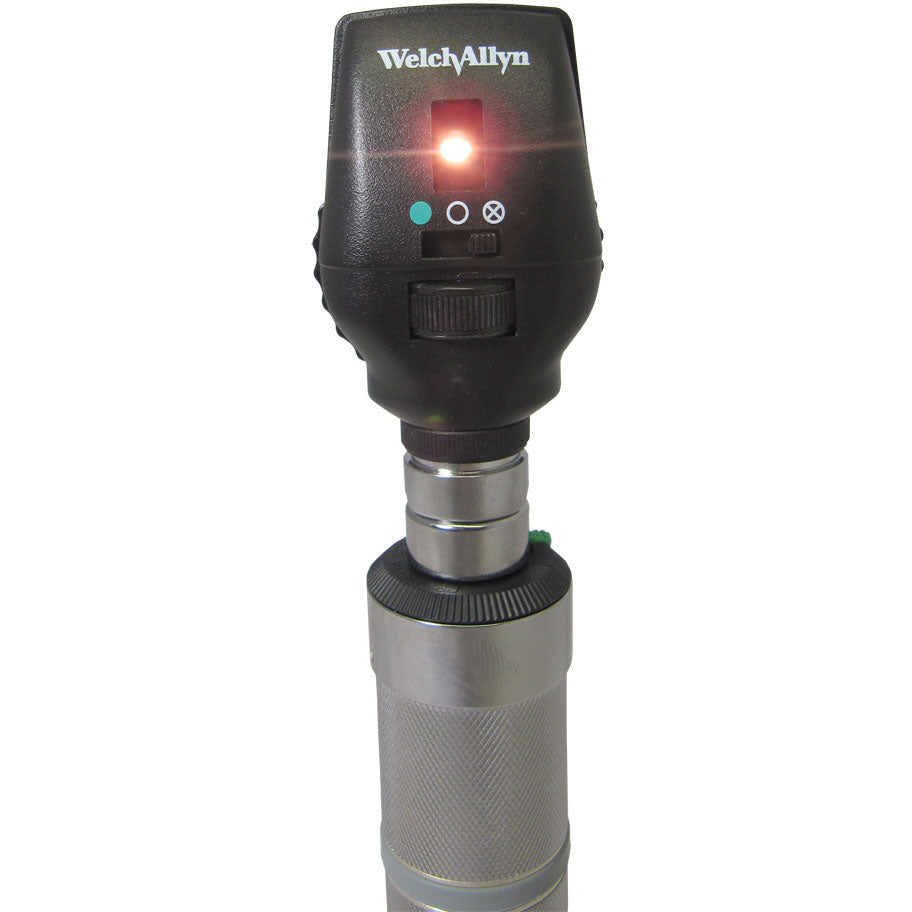

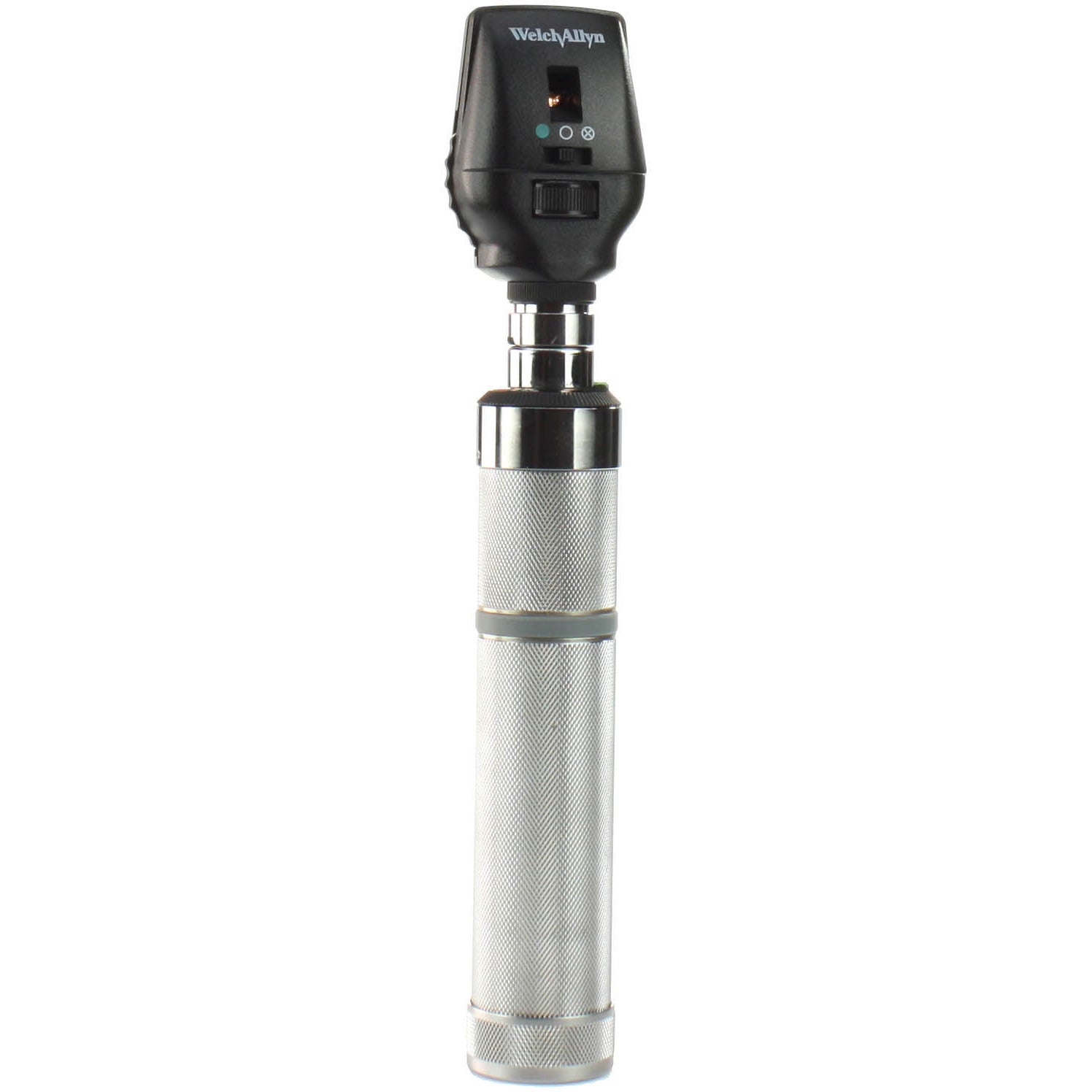

11720 | Coaxial Ophthalmoscope
- Halogen light for true tissue colour and consistent, long-lasting performance.
- The coaxial optics produce a shadow-free spotlight, easier entry into undilated pupils and a larger field of view compared to standard ophthalmoscopes.
-
6 apertures:
-
Micro - allows quick entry into small, undilated pupils.
-
Small - provides excellent view of fundus through an undilated pupil.
-
Large - general examination of the eye through dilated pupil.
-
Fixation - graduated cross-hairs for measuring eccentric fixation or locating lesions.
-
Slit - used to determine levels of lesions and tumors.
-
Cobalt blue - used with flourescein dye to view small lesions, abrasions and foreign objects on the cornea.
-
-
2 filters can be used in conjunction with any of the above apertures:
-
Red-Free filter - filters out red light for easy identification of veins, arteries and nerve fibers.
-
Polarising filter - virtually eliminates corneal reflection.
-
- 28 focusing lenses with a range of -25 to +40 diopters, adjustable via easy-to-reach maywheel.
- Rubber brow-rest prevents scratching of eyeglasses.
- Variable illumination strength via the handle rheostat dial.

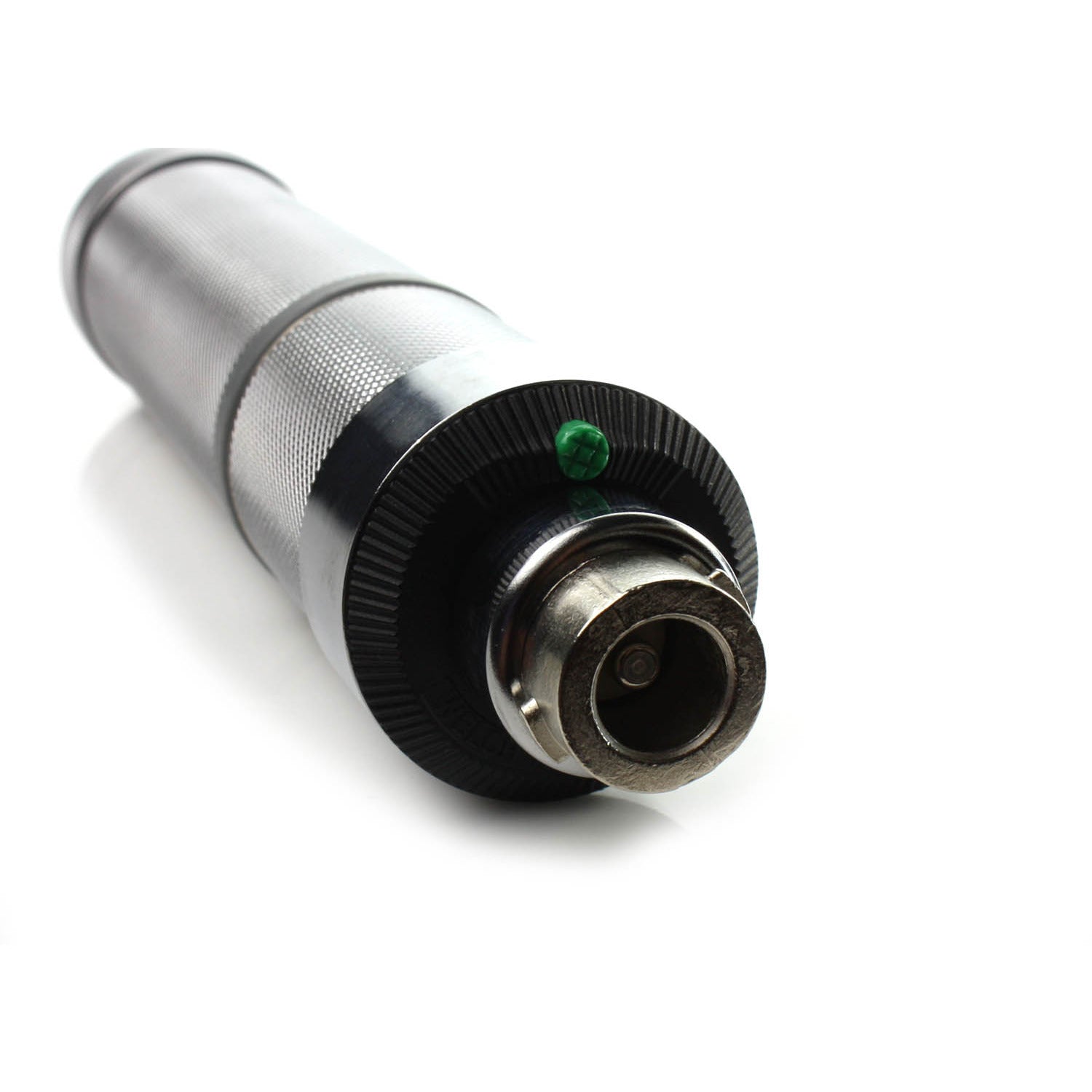

Rheostat Control
Vary the power of illumination with the smooth turn of a dial.

Aperture Selection Disc
Switch easily between 6 apertures via a disc on the head.

Six Apertures
A wide range of practical apertures to select from.

LENS Selection Disc
Focus on the fundus, cornea, iris and other ocular structures.

Two Filters
Red-free or polarising filter can be used in tandem with any aperture.
More information: Using Ophthalmoscopes in Eye Examinations
