Vitalograph 6600 COMPACT Spirometry Medical Workstation with ECG

Sophisticated, integrated cardio-respiratory spirometer

The COMPACT™ Expert with ECG features:

• Operator controlled selection of a 10-s sample trace, but can capture and store several minutes of 12-lead ECG recording;
• Visual electrode contact indication to assist operator;
• Wireless data transmission via Bluetooth (range:approx. 10m);
• High quality multi-channel and 12-lead overview for viewing and printing;
• Print configurable 1 or 2 page reports;
• View traces as 1 x 12; 2 x 6 or 3 x 4 plus rhythm strip;
• Calculation of the heart rate with acoustic and visual signal;
• Full range of parameters are available (e.g. P duration,PQ interval, QRS period);
• Automatic pacemaker detection;
• Rhythm analysis;

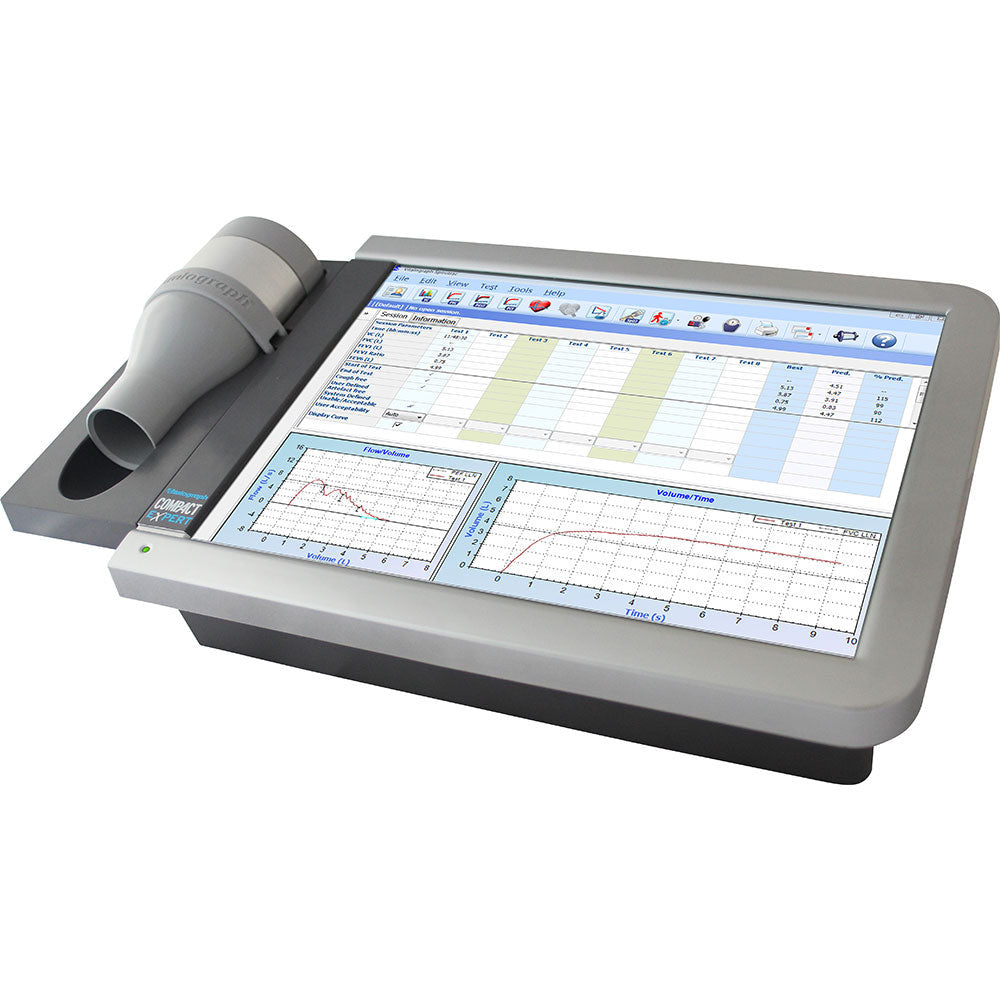

The Vitalograph COMPACT™ Expert is a medical workstation that integrates high quality spirometry, 12-lead ECG, Pulse Oximetry, COPD assessment, blood pressure measurement, challenge testing and more in a flexible, integrated solution. COMPACT™ features secure data management using data encryption in SQL databases.

The COMPACT™ Expert with ECG offers full 12-lead electrocardiography with very low occurrence of lead artefact. Analysis and interpretation come as standard using the world class University of Glasgow interpretation algorithm which provides detailed diagnostic suggestions and evaluation of results. ECG measurements are captured and transmitted wirelessly for display in real-time and data is automatically saved for recall, reporting or printing. Transmitting ECG traces wirelessly is fast and safe with no leads to trip over or create artefacts from movement or electrical sources. The built-in display provides information on electrode contact problems, heart rate, battery status, communication status and digital pacemaker detection.
