Optima Birthing Bed

Gynaecology & maternity birthing bed - maximise comfort and personalise patient care.

Three models available:

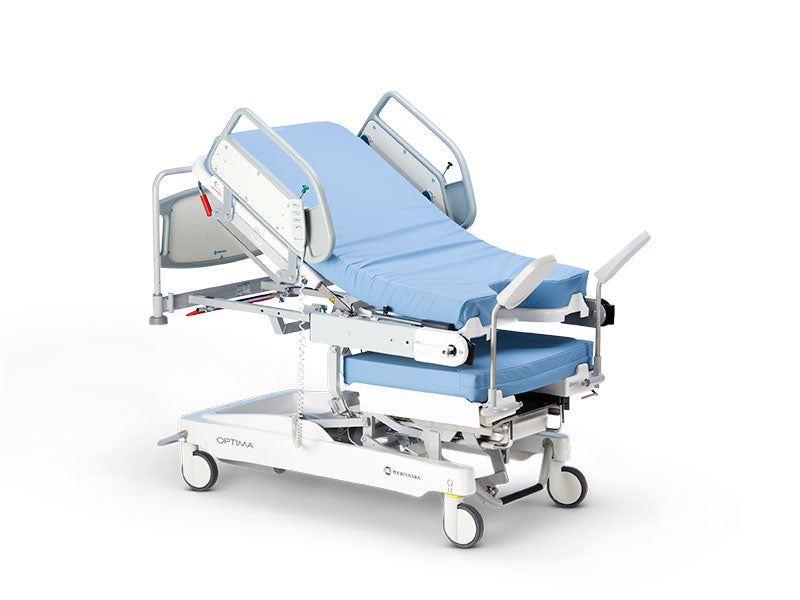

4-motor:

• Electric height, back section, leg section and Trendelenburg adjustment.
• Leg section movement in/out and tilting manually.
• Manual Trendelenburg and quick release back section.

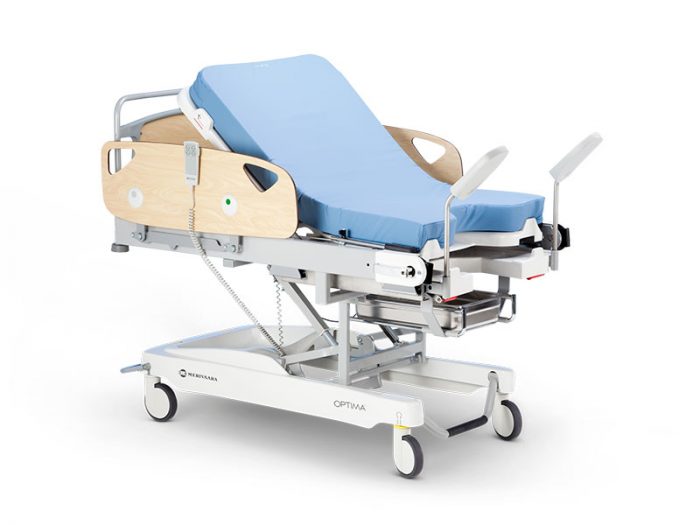

2-motor:

• Electric height and back section adjustment.
• Leg section movement in/out, Trendelenburg and quick release for back section manually.

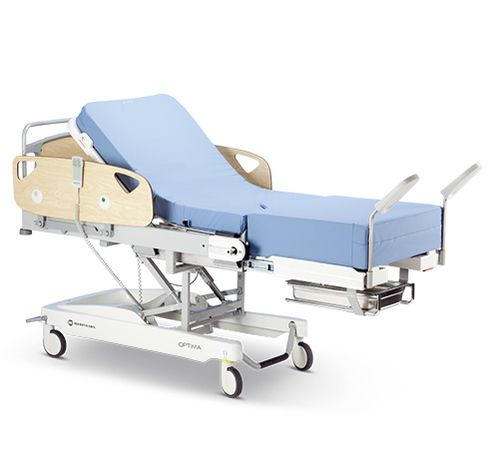

Hydraulic:

• Hydraulic height adjustment and gas spring assisted adjustment of  back section.
• Leg section movement in/out, Trendelenburg and quick release for back section manually.

Specifications:

Structure:

• Painted silver frame.
• CE marked/ MDR compliant.
• Central locking system.
• Lift system provides optimum stability and supports weights of up to 230 kg across all three models.

Comfort

• Multiple delivery positions in a single unit offers a greater level of comfort for the mother.
• Ergonomic foot section extends bed by up to 25cm and slides under the bed when not in use.
• Low minimum height adjustment, 58.5– 95.5cm.

Ease Of Handling

• Handset designed to allow easy and quick positioning of the bed sections.
• Electric Trendelenburg / Manual Trendelenburg position to (12º).
• Ultra light yet stable, the leg section is easy to manoeuvre and slides in under the bed together with the mattress, making work flow faster and more ergonomic.

Easy Cleaning

Manufactured from high quality materials, guaranteeing their long life and durability.
Clear frame construction enables easy cleaning and high level of hygiene.

Safety

• 150mm diameter castors with central braking and steering facility operated from head-end for ease of use when portering.
• Emergency release of  the backrest for quick lowering of the section in the event of an emergency.
• Conforms to Regulation (EU) 2017/745.

Dimensions:

Hydraulic:

• Total width: 1030 mm
• Patient surface width: 780 mm
• Total length min-max: 1520 – 2110 mm
• Patient surface min-max: 1320 – 2010 mm
• Height adjustment: 570 – 935 mm
• Patient maximum weight: 190 kg
• Safe Working Load (SWL): 230 kg
• Trendelenburg: 12°
• Back section adjustment: 0 – 60°
• Castors: Central locking 150 mm with braking bar
• Weight: 114 kg
• Hand control: No
