MIR Spirobank II Basic Spirometer with 1 Reusable Turbine

Low cost handheld diagnostic Spirometer with intepretation.

Measures basic parameters. PC connectivity via USB.

The Spirobank II® Basic is a handheld, portable diagnostic spirometer designed for use in environments where it’s only necessary to take basic measurements of the main spirometric parameters.

Its pocket size design with rechargeable long-life battery makes it ideal for use in situations where remote testing is required. The user interface is fast and intuitive to operate with an icon-based navigation menu on a backlit, high resolution display. lt can be used as a “stand-alone” with onboard memory that is capable of storing up to 10,000 test results. It can also connect to a PC via USB allowing for real-time spirometry testing, and downloading of test results stored on the device using the free MIR WinspiroPRO® PC Software.

The Spirobank II® Basic measures FVC, FEV1, FEV1%, PEF, FEF25–75, FET, Extrap. Volume, Lung Age, VC, IVC, IC, ERV and PRE and POST Bronchodilator comparison. Results are previewed on the display following a test, with a flow/volume graph in addition to the patient’s actual spirometry readings for immediate assessment. It also features a traffic light health indicator for easy interpretation of results.

Re-usable and disposable consumable options

The Spirobank II® Basic can be used with both re-usable and single-use disposable turbines. Re-usable turbines are used with standard adult one-way valve mouthpieces. The single-use disposable turbines have a pre-connected mouthpiece and are individually factory calibrated and packaged.

KEY FEATURES

• Easy to use handheld spirometer

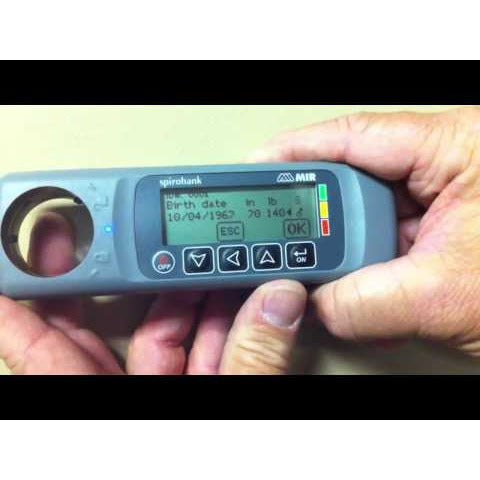

  Navigate easily through the icon-based menus on a clear, high resolution screen
• Measures main spirometric parameters
  Perfect for simple spirometry testing
• Traffic light health indicator
  A visual way to easily interpret test results
• Large memory storage
  Store up to 10,000 tests
• USB connectivity to PC
  Download results stored on the device and conduct real-time spirometry usingWinspiroPRO® PC software.
• Built in rechargeable battery

CONTENTS

• Spirobank II Basic Spirometer
• 1 x Re-usable turbine with mouthpiece or box of 100 disposable turbines (see ordering codes)
• 1 x Winspiro PRO PC Software
• 1 x Noseclip
• 1 x USB charging/data cable
• 1 x User manual (on CD)
• 1 x Carry pouch
