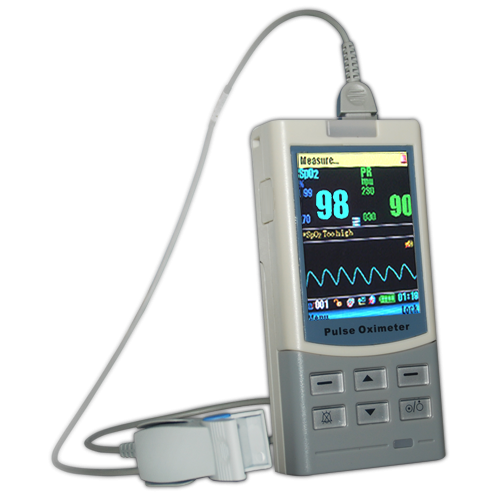

MD300M Hand Held Pulse Oximeter with Sensor

The MD300M is packed full of features, yet at the same time is very easy to use and you can select the features you need simply by using the up, down and select buttons. It is designed to be robust and can give you at-a-glance analysis of SpO2 and Pulse Rate, whether you need a table or instant graph review. It's portable, compact and reliable and would be perfectly suited to a clinical environment, hospital use, medical first aid departments or serious home use.

Features:

• High resolution large 2.8 TFT screen displays SpO2, PR, waveform and pulse bar
• Adjustable audible and visual alarms. Bright coloured alarm lamp on front of unit, separate from the screen
• Very easy to use menu system for adjusting settings and features
• Battery-low indicator
• Adjustable backlight and voice
• Automatic power-off function
• Lock function to prevent keys from being accidentally pressed
• Robust attachment for sensors to main unit, prevents accidental removal of cable
• Battery case lock prevents unauthorised removal of batteries
• Allows 127 different patient IDs
• 72-hour data storage and review
• The large built-in screen allows you to review the recent results as well as instantly view average SpO2 and PR
• Even on-screen graphs are easy and clear to display
• Audible alarm supression - can be silenced for 2 minutes
• MedView software for further data analysis on a PC
• Bluetooth, charger stand and AC/DC adapter are optional
• 3 AA alkaline batteries
• Supplied with adult sensor probe but also suitable for paediatric and infant use please see accessories for required sensors

Technical Specification:

• SpO2
• Measurement range 70% - 100%
• Resolution 1%
• Measurement Accuracy 70% - 100%: 3 Digit
• 0% - 69%: no definition

Pulse Rate

• Measurement range 30 - 235bpm
• Resolution 1bpm
• Measurement accuracy +2bpm or 2% (The larger)

Display:

• Type 2.8 colour TFT
• Parameters SpO2, PR, pulse bar, Plethysmogram
• Brightness Adjustable 1 - 7 level

Alarm Functions:

• Alarm SpO2, PR, Probe off, Finger out
• Battery-low indicator
• Modes audio & visual alarm, information

Data transmission:

• Transmission method USB Data cable
• ID setup 1 - 127
• Data record 72 hours

Dimensions and weight:

• 125mm (L) x 60mm (W) x30mm (H)
• 195g (excluding the batteries)

Power Supply:

• Type 3 x AA alkaline batteries (supplied) or 3 x AA Ni-Mh batteries
• If Ni-Mh batteries are used in conjunction with optional charger stand, the oximeter can be kept on charge while placed in stand
• Battery operation time: 16 hours continuously (maximum)
• AC adapter Input Voltage: AC 100 - 240V
• Input Frequency: 47 - 63Hz
• Output Voltage: DC 5V5%
• Output Current: 2A MAX

Includes:

• 3 x AA alkaline batteries;
• Instruction manual
• Adult finger probe, Model: M-50E;
• Software CD containing MedView for PC installation
• USB Cable
