A&D Medical TM-2657P Waiting Room Upper Arm Blood Pressure Monitor

The TM-2657P is the latest model in the range of freestanding fully automatic blood pressure monitors, whose ground-breaking designs have been well received and have created many new applications, places of use, and markets.

The main reasons for the high reputation of the previous models are their fast and accurate measurement, compact profile, ease-of-use, and durability.

The new TM-2657P has been superbly styled in Japan, having a slim and compact design with increased printout speed, and offers a diverse selection for connectivity.

The TM-2657P helps expand market potential in the various locations and areas in everyday life such as hospitals, medical clinics, health checkups, corporate wellness, pharmacy services, and fitness centers.

Features:

• User-friendly small footprint & barrier-free design
• One-Touch measurement - no fiddling with settings, just press Start
• High accuracy and durability - thanks to "Torque Controlled Belt drive Method" (TCBM) cuff fastening method
• Antibacterial arm cuff cover - included as standard
• Extension communication board - RS-232C and/or Bluetooth (contact us to order - this is not included with this product.)
• Reliable high speed printer
• Easy paper replacement
• Various print formats - available upon user request
• Irregular Heart Beat (IHB) - indicated on printout
• 2 year warranty

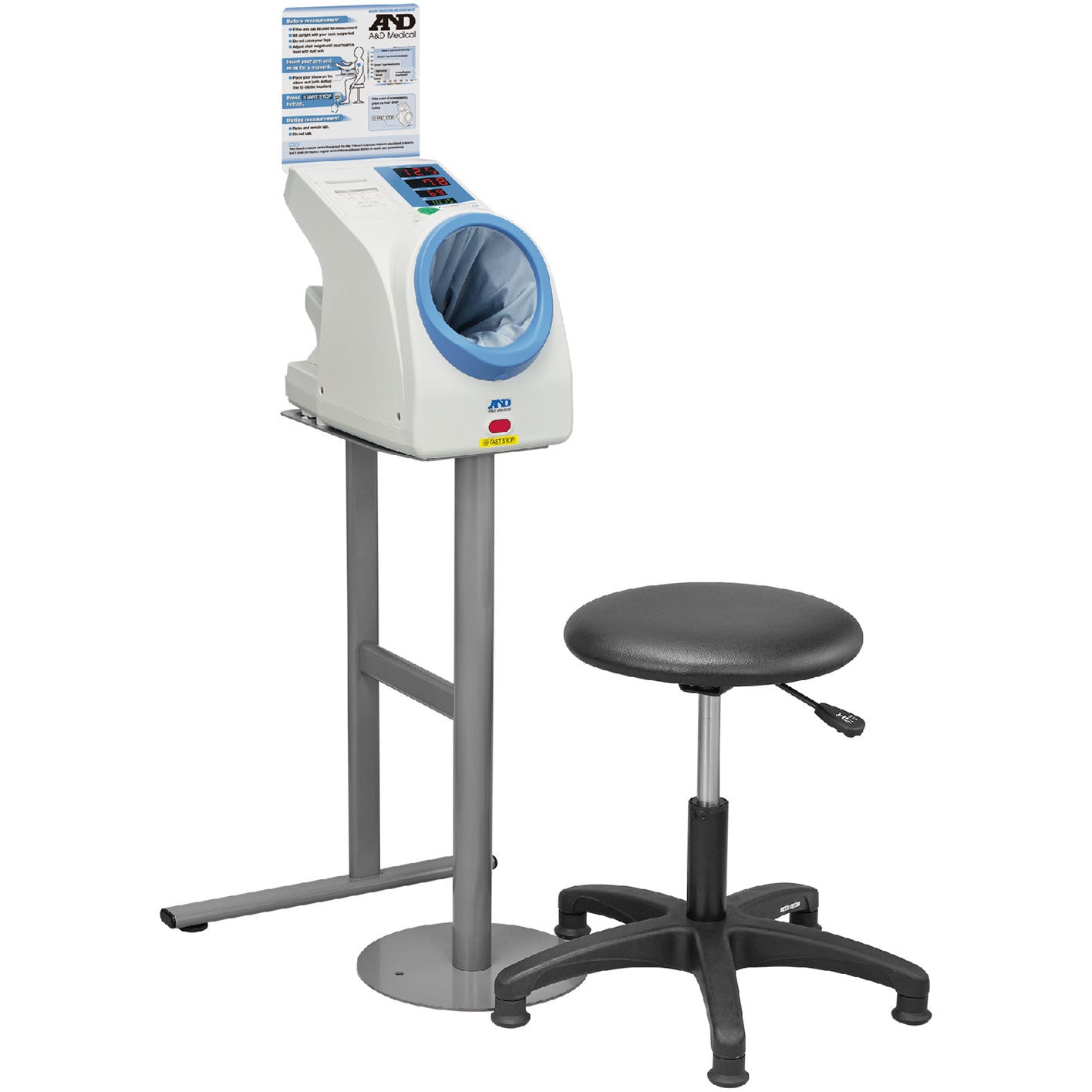

Comes with stand

Technical Data

• Measurement Method: Oscillometric
• AC power supply unit: Switching 100-240V AC　50-60Hz
• Protection against electrical shock: Class I, Type B
• Pressure display range: 0-299 mmHg
• NIBP measurement range: SYS 40-270 mmHg, DIA 20-200 mmHg, Pulse 30-240 bpm
• Measurement accuracy: Pressure: ±3 mmHg, Pulse: ±5%
• NIBP clinical test: BS EN1060-4:2004, BHS:1993, +/-5mmHg SD:8mmHg
• Cuff fastening method: Torque Controlled Belt drive Method (TCBM)
• External dimensions: 241(W) x 324(H) x 390(D) mm (9.5(W) x 13.0(H) x 15.4(D) inches)
• Weight: Approx. 5.5 kg (12.1 lb)
• Applicable arm circumference: 7 inches (18.0 cm) to 13.8 inches (35.0 cm)
• Cuff size: 125 x 300 mm (4.9 x 11.8 inches)
• Display Type: 3-digit display by LED
• Systolic (SYS), Diastolic (DIA), Pulse rate (PUL):
• Counting function: Display of number of measurements to date: up to 999,999 times
• Applied pressure: Automatic inflation by air pump
• Pressure detection method: Capacitance type pressure transducer
• Operating conditions: Temperature: 10-40 °C, humidity: 30-85% RH, no condensing
• Transport/Storage conditions: Temperature: -20-60 °C, humidity: 10-95% RH, no condensing
• Safety device (Electrical): Quick release when START/STOP button is pressed
• Safety device (Electrical): Quick release when FAST STOP button is pressed
• Clock Function: Clock Display, Date & Time (2015-2050)
