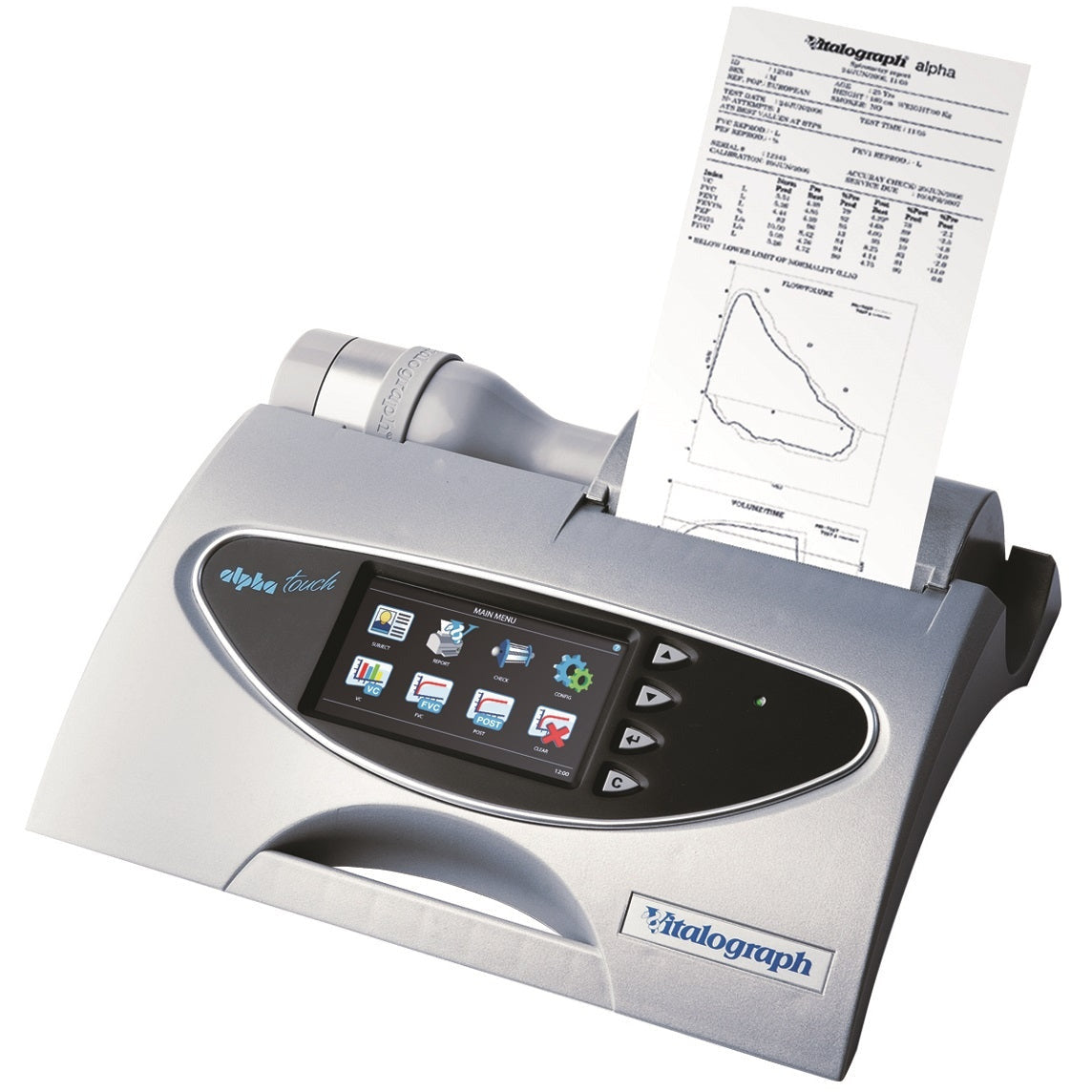

6000 Vitalograph ALPHA Touch

The Flexible All Round Spirometer For Use With or Without a PC

Vitalograph ALPHA Touch is an easy to use, lightweight desktop spirometer that offers the benefits of portability and a built-in printer.

The precise and durable measurement technology is extremely accurate and stable over time, assured through Vitalograph's simple calibration check routines as recommended by international spirometry guidelines (ARTP, ATS/ERS, etc.) and good practice. No need for expensive disposable sensors, turbine, spirettes nor flow tubes with optimal hygiene assured via Vitalograph Bacterial Viral Filters (BVF™).

A large, high resolution colour touch screen display, combined with an intuitive icon driven user interface, makes the ALPHA Touch quick and simple to operate.

A database for over 10,000 patients, child friendly incentive animations and the latest GLI spirometry predicted equations and Z-scores contribute to all round suitability for adult and paediatric patients within general healthcare and occupational health environments.

The ALPHA Touch is supplied with Vitalograph Reports Software with the ability to create editable PDFs for filing and manual upload to electronic medical record (EMR) systems. Customers can also choose to upgrade to the ALPHA Touch with Spirotrac® Software, which allows for automatic data exchange, via HL7 and GDT transfer protocols, with EMR systems and the ability to add other diagnostic tests and physiological measurements (including resting 12-lead ECG, SpO2, NIBP and Audiometry).

Including:

• EMIS*
• Vision*
• Cohort
• Medgate
• SystmOne*
• Clinic-All
• eOPAS

* In addition to Spirotrac Software, customers will require Vitalink Middleware Software to enable data exchange with EMIS, Vision and SystmOne Primary Care EMR systems.

Features:

• Integral thermal printer
• Durable measurement technology without the need for expensive disposable sensors, turbines, spirettes or flow tubes
• Optimal hygiene via Vitalograph Bacterial Viral Filters (BVF)
• No user calibration required*
• Simple and intuitive navigation
• Built-in interpretation of measurement results
• Mains or battery powered
• Includes all parameters for adult and paediatric patients within general healthcare and occupational health
• Includes Vitalograph Reports Software with the ability to create editable PDFs
• Features latest GLI spirometry predicted equations and Z-scores
• The ability to use with or without a PC
• Touch screen for modern and intuitive navigation
• Patient management database for storing more than 10,000 patients
• Intuitive icon driven user interface
• Choice of child friendly incentive animations to help improve patient cooperation
• Optional upgrade to Spirotrac Software enables automatic data exchange, via HL7 or GDT transfer protocols, with electronic medical record (EMR) systems

Specifications:

• Product - Vitalograph ALPHA Touch
• Model - Number 6000
• Dimensions - 300mm x 250mm x 75mm
• Weight - 2kg net
• Gross Weight and Size - (Packed) 470mm x 112mm x 377mm 4kg
• Subjects - Automatic population of database from Spirotrac Name, ID; Age, Height, Gender; Smoking Status, Body Mass Index and more depending on model. Storage of up to 10,000 subjects
• Selectable Parameters (depending on model) - VC; IVC; IC; VT (TV); TLC; RV; IRV; ERV; FRC; FVC; FIVC; FEV1; FEV3; FEV6; FVC; FEV1/VC; FEV1/FVC; FEV3/VC; FEV3/FVC; FEV1/FEV6; FEF75; FEF50; FEF25; FEF25-75; FEF25-75/FVC; FIV1; PIF, FIV1/FIVC, FIF25, FIF50, FIF75, FEF50/FIF50, FET, MVVind, FEV1 Ratio; FEV0.5; PEF L/min; PEF L/s; FEF 0.2-1.2; FEF 75-85%; FEF25%; FEF50%; FEF75%; FMFT; FIF25%; FIF50%; FIF75%; PIF; FEV0.75; Lung Age and more
• Environmental Data - Selectable: Temperature (built in sensor), Barometric pressure, altitude and humidity
• Test Types - Single breath tests, flow/volume loops, multi-breath testing, tidal breathing and combined VC/FVC type test methods supported
• Predicted Values Selectable (depending on model) - ERS/ECCS; GLI, NHANES, Polgar, Pereira, Berglund, Forsche, Gutierrez, Hedenström, Taiwan; Knudson, Crapo; Hsu; KNLW; Viljanen; SEPAR; Gulsvik; SBPT; Tamura; Ip; Quanjer; Wang; Dockery and more
• Suggested Interpretation - User selectable
• Storage Humidity - 10% to 95%
• Storage Temperature - 0°C to 50°C
• Recommended Operating Temperature Range - 17 - 37°C; Design Limits: 10-40°C
• Data Storage - Stores up to 10,000 subjects
• PowerSAFE - Input 100 - 240V AC 50-60Hz, output 12V DC
• Battery Pack - Rechargeable NiMh, 7.2V 1, 800mAH
• Flow Detection Principle - Fleisch type pneumotachograph
• Volume Detection - Flow integration sampling @ 100Hz
• Resolution - 10 mL volume; 0.01 L/s flow
• Accuracy when in Operating Range - Flow +/- from 10% to 5%
• Max flow rate +/-16L/s
• Min flow rate +/-0.02L/s
• Volume Accuracy Better than +/-3
• Maximum Displayed Volume - 10L
• Linearity +/-3%
• Maximum Test Duration - 90 seconds
• Flow Impedance - 0.1kpa L/s @ 14L/s
• Complies with ATS/ERS 2005
• Printer - Thermal
• Performance Standards ISO 26782:2009
• ISO 23747:2007
• ATS/ERS 2005
• Safety Standards IEC 60601-1:2005
• Medical Devices Directive 93/42/EEC1993 as amended
• Designed & Manufactured Under ISO 13485:2003 and 2016
• FDA 21 CFR 820
• CMDR
• Communications USB and CF card
• Connectivity USB 2 B
