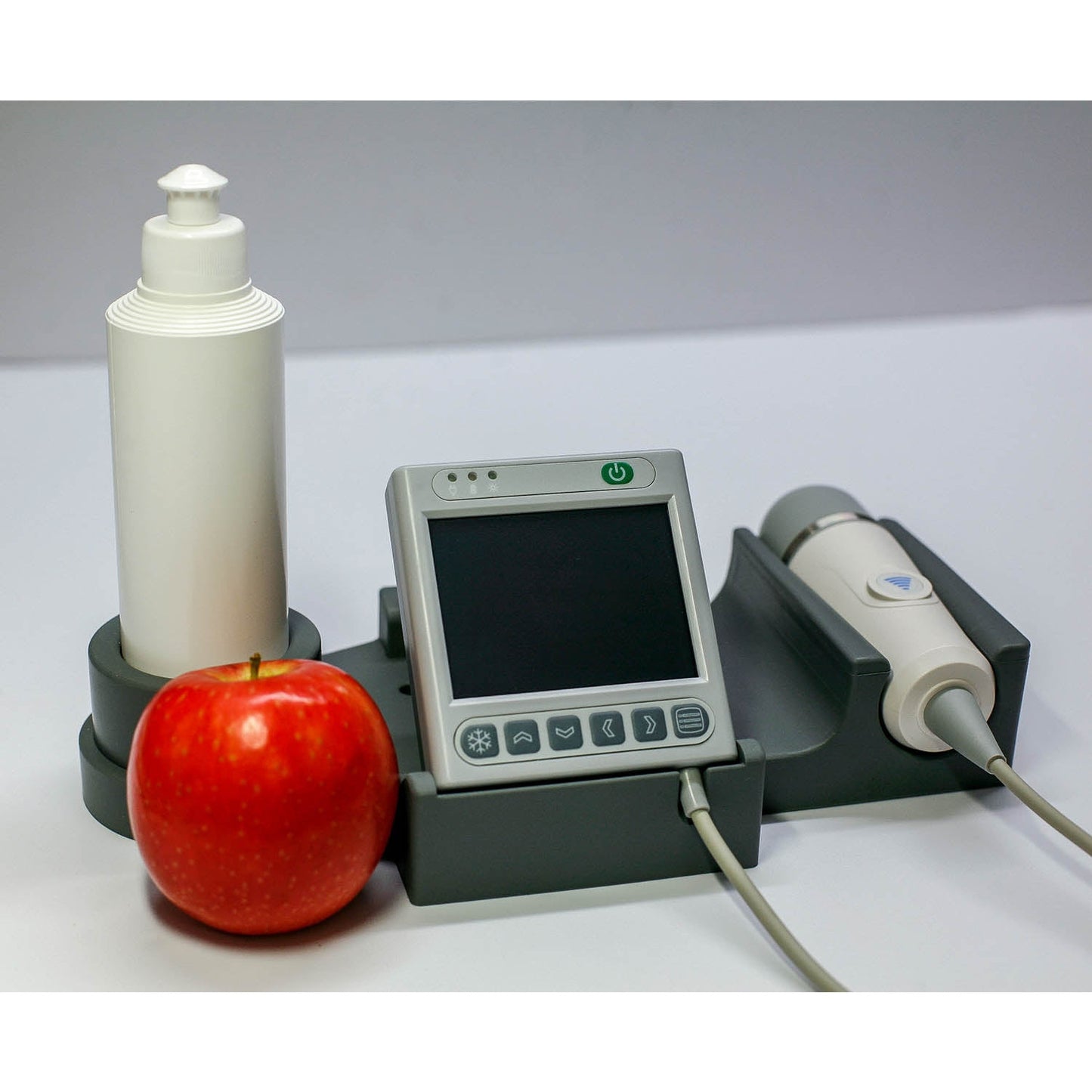

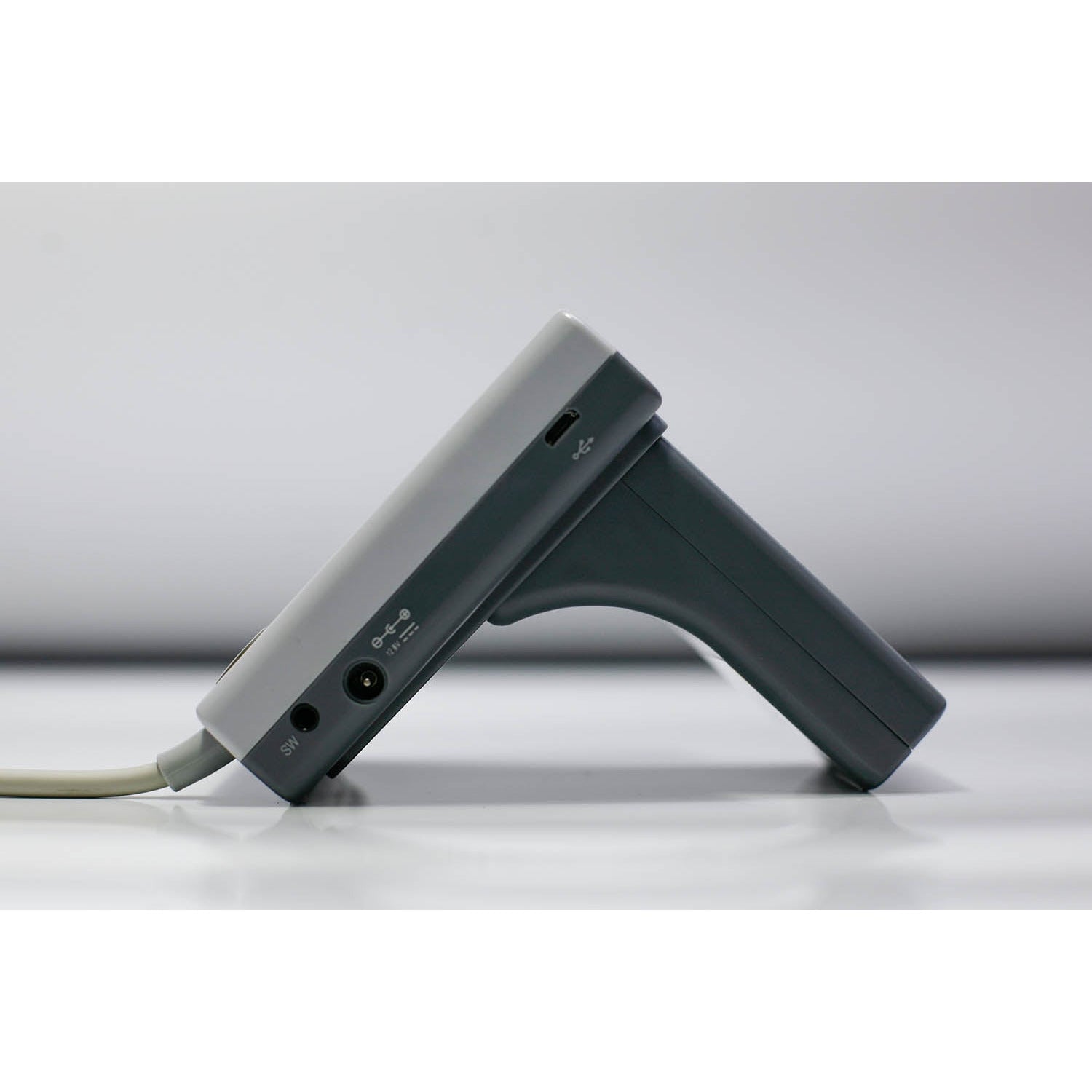

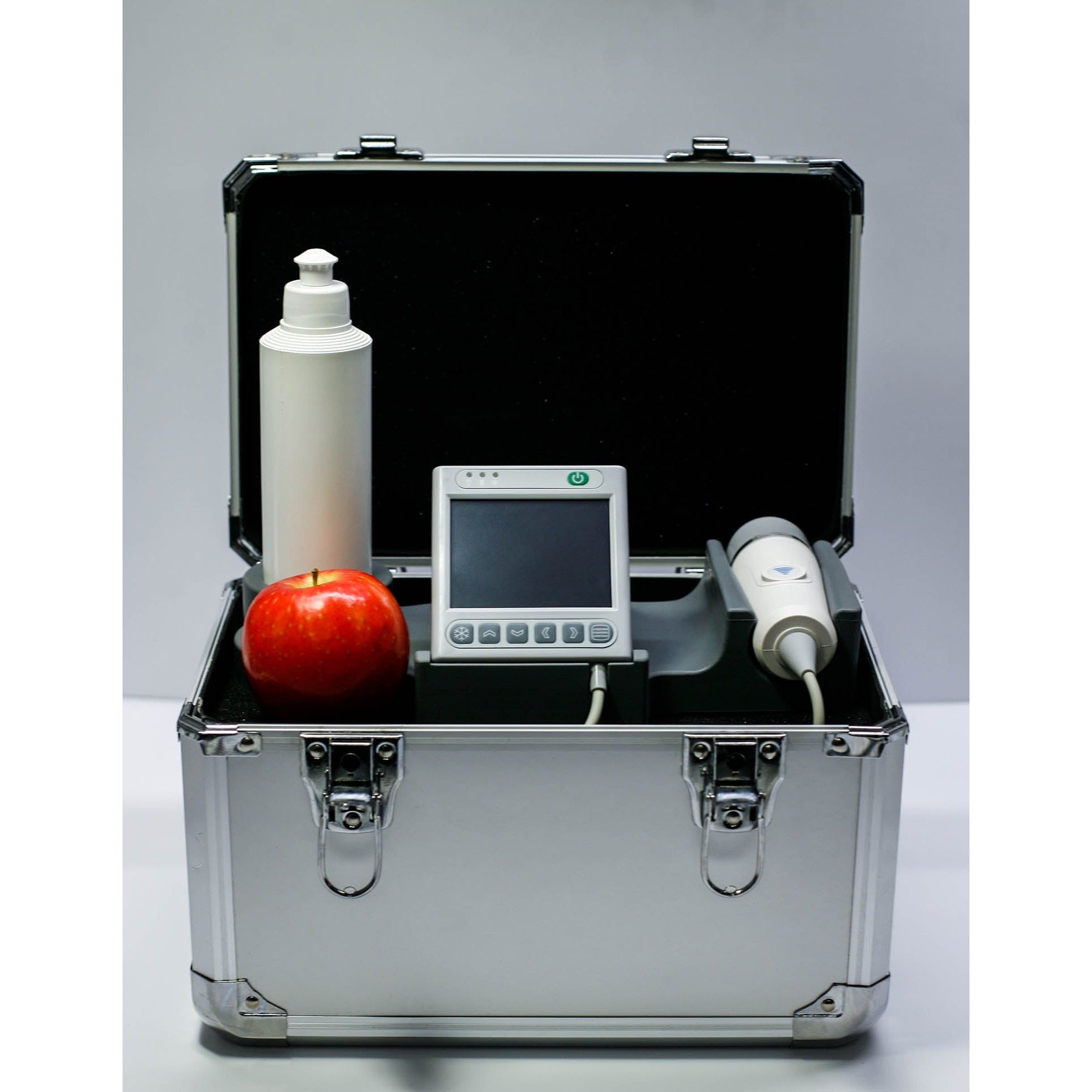

A small and lightweight 3D bladder scanner ideal for rapid measurement of urine bladder volume in adult, paediatric and bariatric patients within a community setting.
- Small and lightweight design
- 3 scan settings – Adult, Bariatric & Paediatric
- Real-time pre-scan -Ease of aiming
- Adjustable contrast – Improved vision
- 2 viewing displays
- Lite mode: For precise bladder alignment
- Standard mode: Ideal for specialist Doctors/Nurses
- 12 plane images – Showing a full 360º view of the bladder
- Urine volume alarm – Customisable
- Anonymised Imaging “Privacy by Design” – ensuring data protection*
- Warranty – Main unit 2 years, Probe 1 year, Battery 6 months
- Self-servicing options available

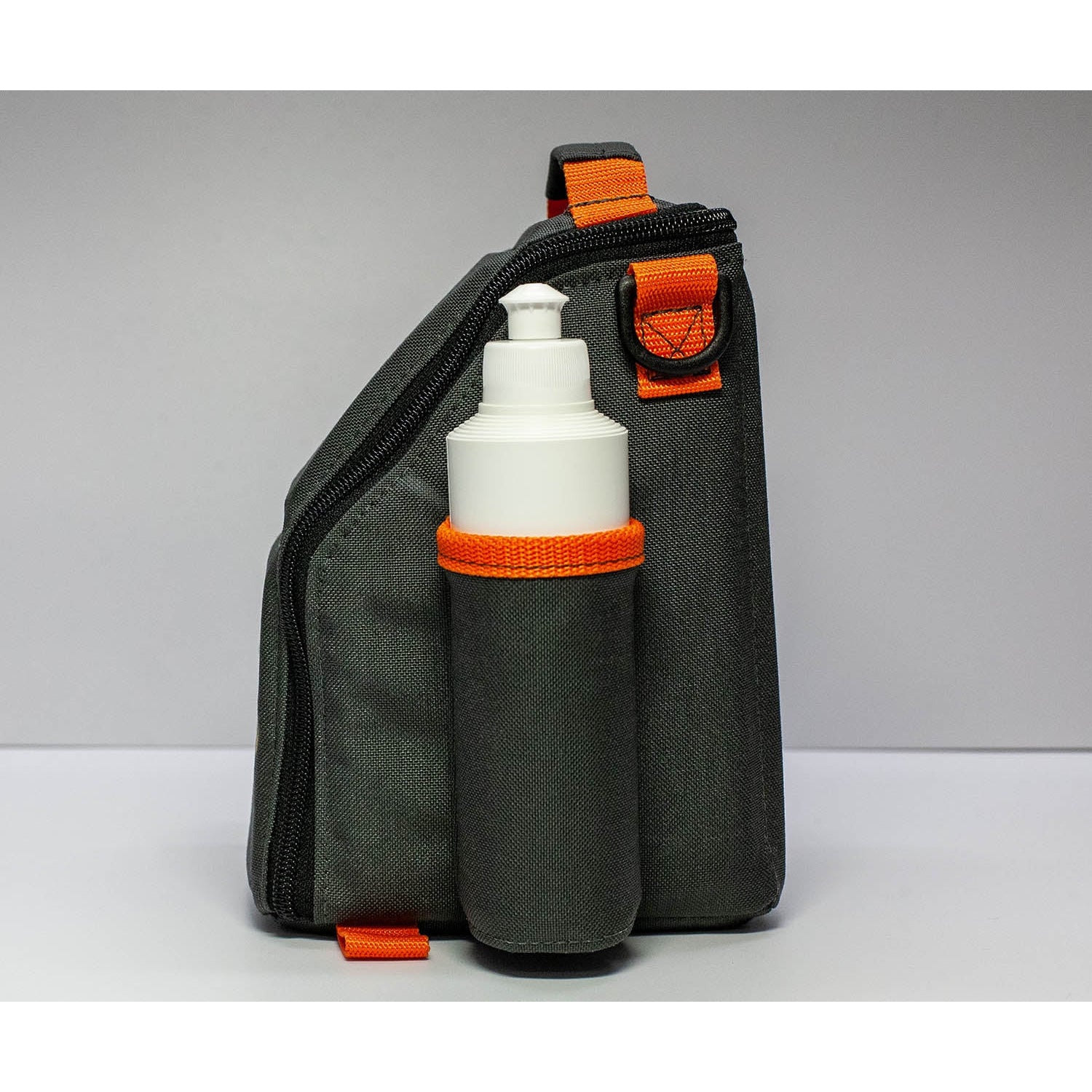

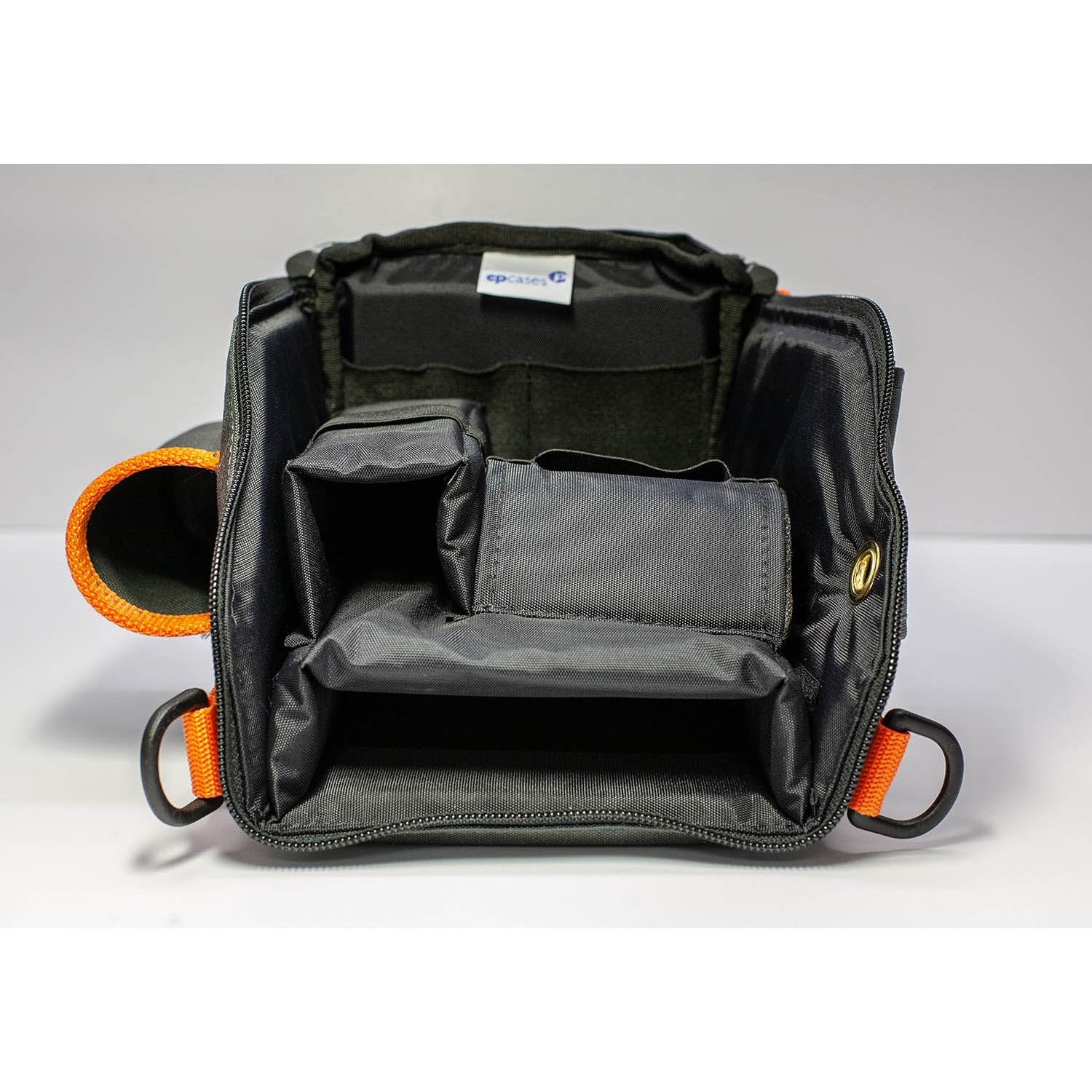

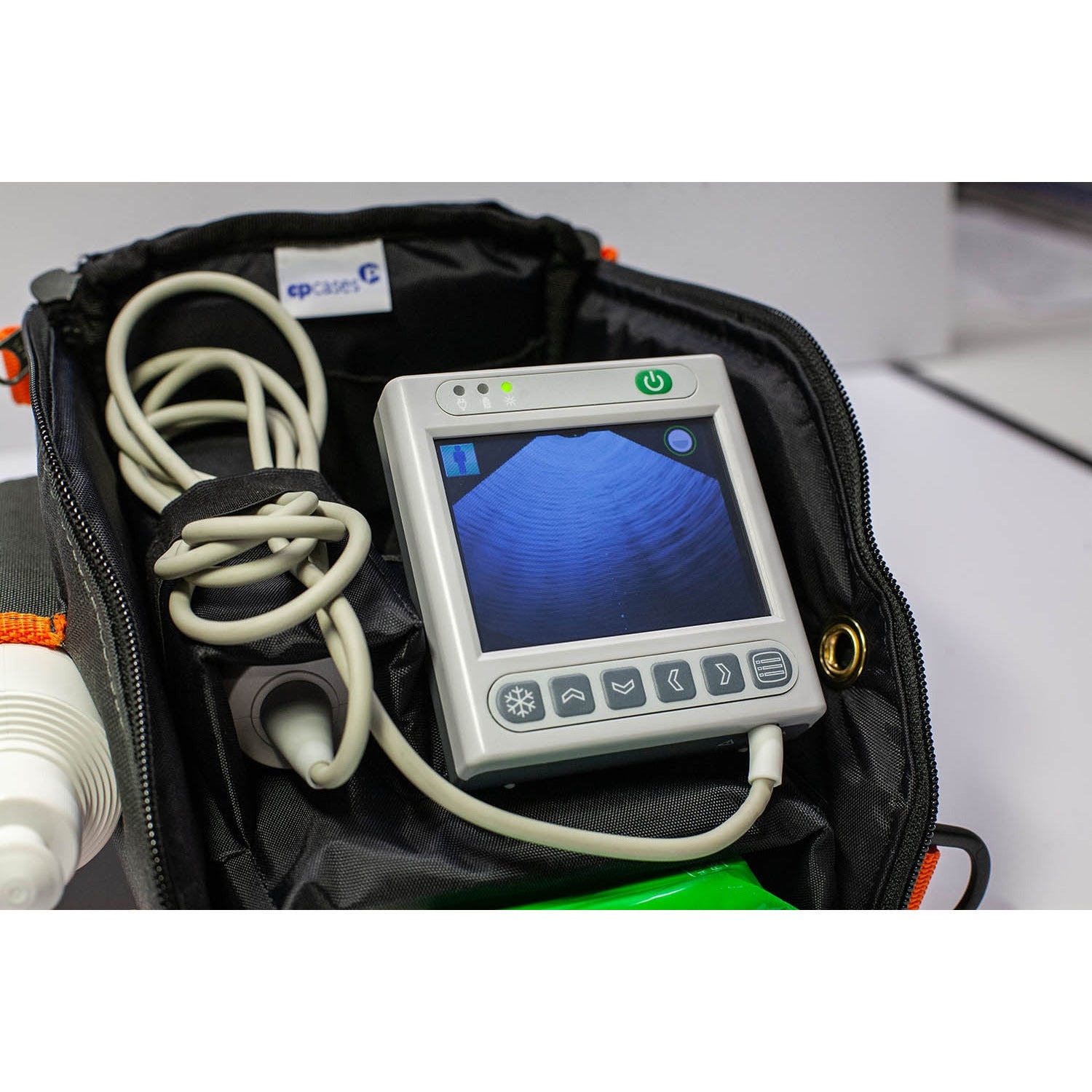

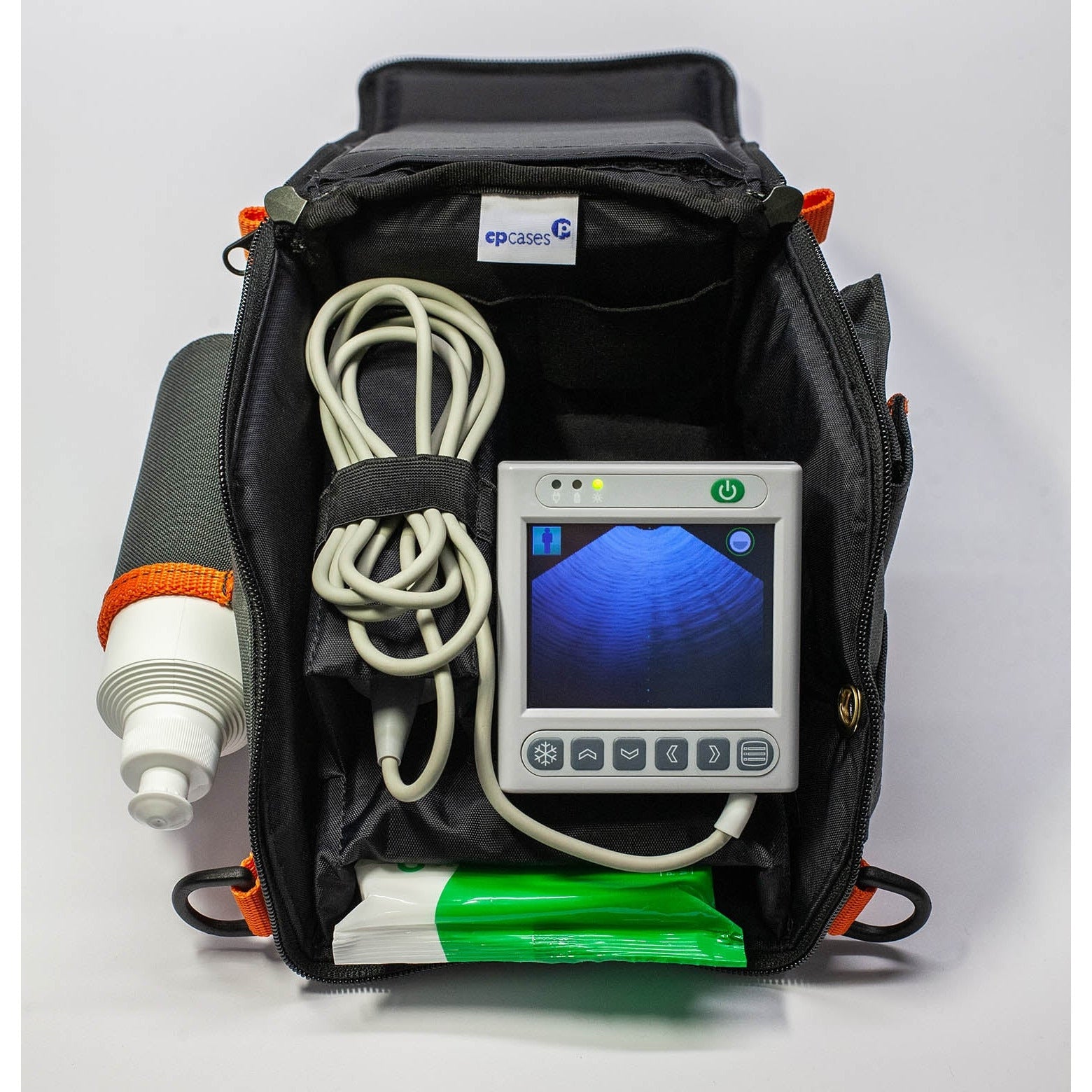

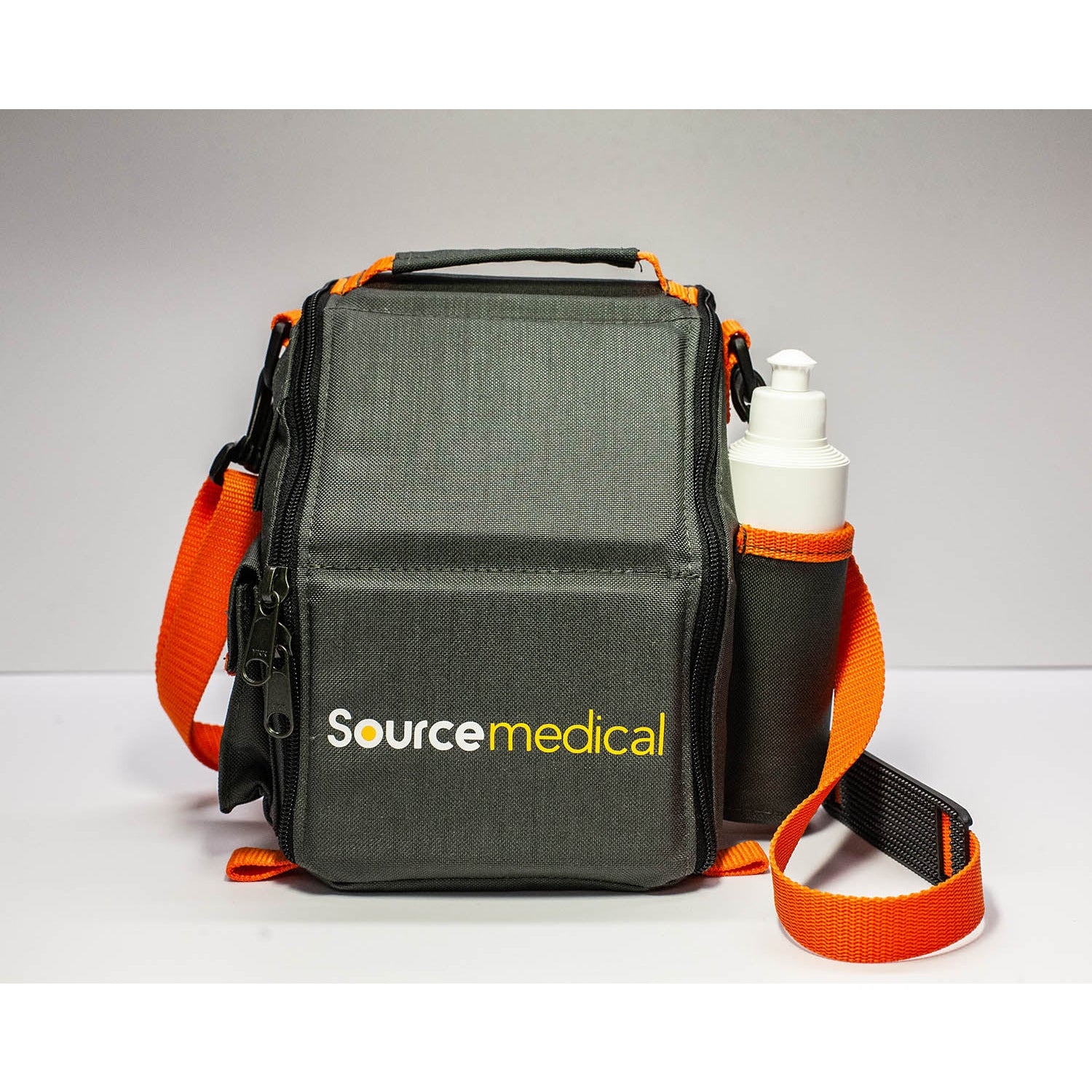

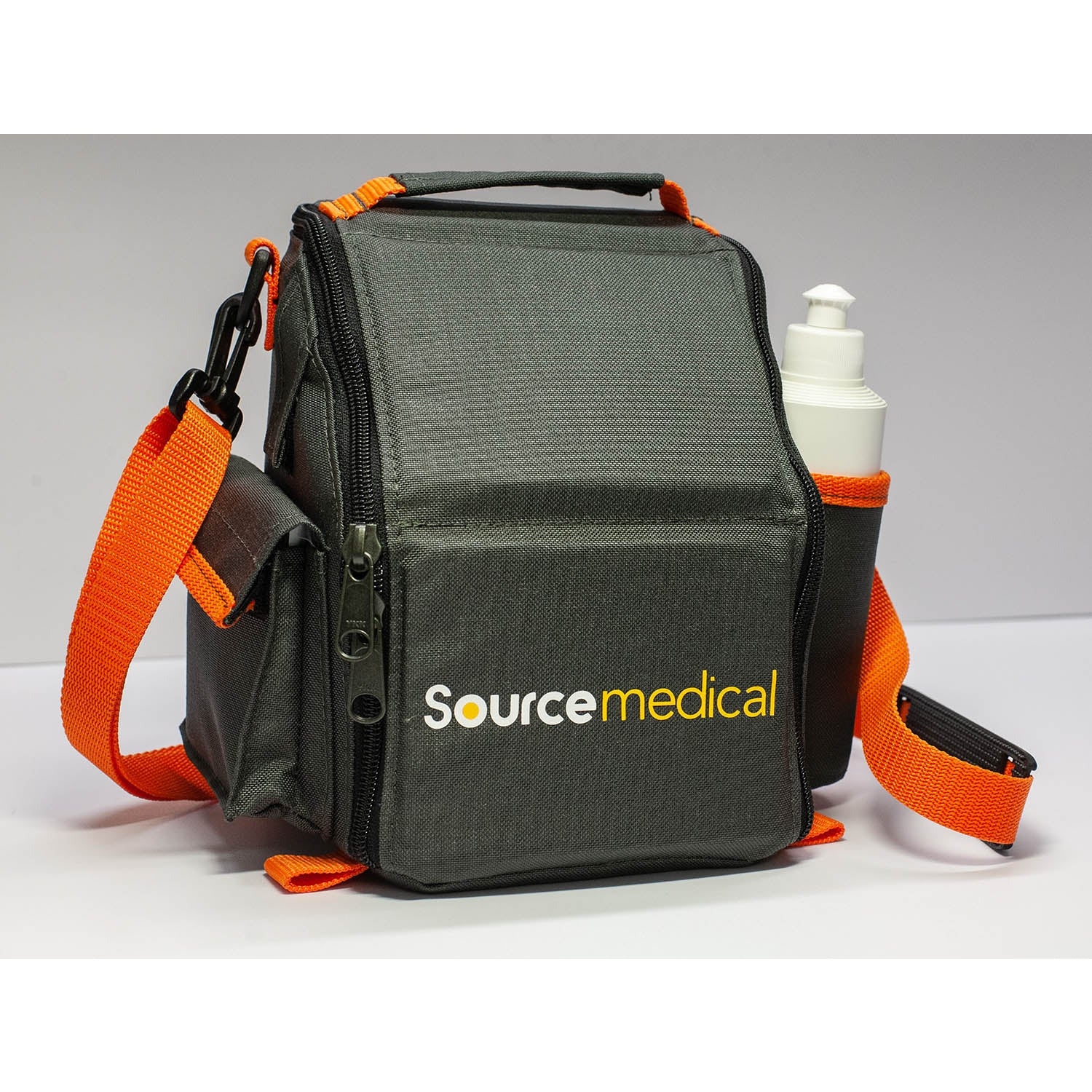

- Soft case – Bespoke, Military Grade material (Optional)
- Car charger (Optional)
*Depending on organisation requirements, images may be stored either on a USB Drive or downloaded directly after each scan.
N.B. additionally, images may be captured via a secondary digital device e.g. smartphone or tablet camera.
Technical Data
- Dimensions: L90 x H98 x D25
- Weight: 750g
- Scan method: 3D 12 planes
- Measurement accuracy: ±15ml/%
- Scan volume range: 20-999ml
- Transducer frequency: 2.5MHz
- Display: 3.5″
- High resolution: LCD
- Battery: Lithium 2600mAh
- Power: DC12.8V 3.0A
A discounted price will be available for multiple units. Please contact customer services for more information.
