Welch Allyn 3.5v Elite Desk Diagnostic Set (Rechargable)

Wide-angle Viewing Lens
With easy access for cleaning.

Insufflation port
Attach an insufflation bulb to test the mobility of the tympanic membrane via pneumatic otoscopy.

Throat Illuminator
Two part head includes a built in penlight for direct illumination.

11720 | Coaxial Ophthalmoscope

• Halogen light for true tissue colour and consistent, long-lasting performance.
• The coaxial optics produce a shadow-free spotlight, easier entry into undilated pupils and a larger field of view compared to standard ophthalmoscopes.
• 6 apertures:
  • Micro - allows quick entry into small, undilated pupils.
  • Small - provides excellent view of fundus through an undilated pupil.
  • Large - general examination of the eye through dilated pupil.
  • Fixation - graduated cross-hairs for measuring eccentric fixation or locating lesions.
  • Slit - used to determine levels of lesions and tumors.
  • Cobalt blue - used with flourescein dye to view small lesions, abrasions and foreign objects on the cornea.
• 2 filters can be used in conjunction with any of the above apertures:
  • Red-Free filter - filters out red light for easy identification of veins, arteries and nerve fibers.
  • Polarising filter - virtually eliminates corneal reflection.
• 28 focusing lenses with a range of -25 to +40 diopters, adjustable via easy-to-reach maywheel.
• Rubber brow-rest prevents scratching of eyeglasses.
• Variable illumination strength via the handle rheostat dial.

Rheostat Control
Vary the power of illumination with the smooth turn of a dial.

Aperture Selection Disc
Switch easily between 6 apertures via a disc on the head.

Six Apertures
A wide range of practical apertures to select from.

LENS Selection Disc
Focus on the fundus, cornea, iris and other ocular structures.

Two Filters
Red-free or polarising filter can be used in tandem with any aperture.

71670 | Nickel-Cadmium Powered Handle

• Rechargeable nickel-cadmium battery included
• Smooth, nonabrasive knurled finish ensures a no-slip grip
• Chrome-plated brass construction for durability and reliable long-life

Easy Attachment
Align cutouts with lugs, press and twist 90° to fit. Reverse procedure to remove.

Rheostat Control
Smoothly control the applied power with the easy grip dial.

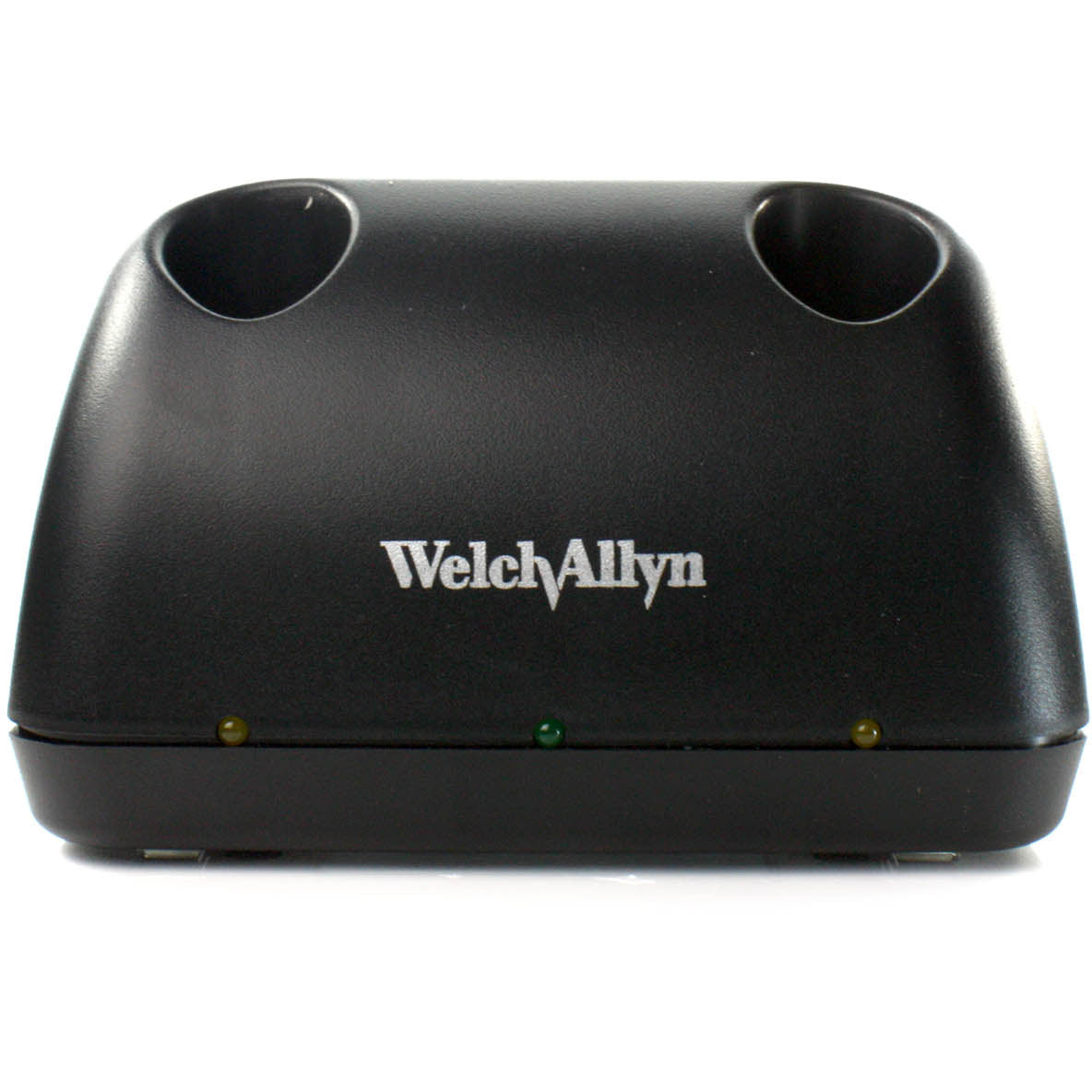

71140 | Universal Charging Unit

• Colored LEDs indicate power to the unit and that handles are charging
• Advanced circuitry for constant automatic safe charging and optimum lamp performance and life
• Compact for convenience and mobility

Laser Engraving

Medisave offer a laser engraving service on the handle of this diagnostic set. Because we recognise the value and quality of your tools we have invested in the highest quality equipment and technicians to give you probably the finest engraving service available in the UK (superior to our competitor’s efforts). The end result is an elegant, permanent, precision mark on the surface of the handle, allowing you to show a little of your personality and, more importantly, deterring thieves and making it easier to retrieve your scope should you misplace it. The service does not delay your order and next day delivery services are available.

HIGH QUALITY | NO DELAY | NEXT DAY DELIVERY
