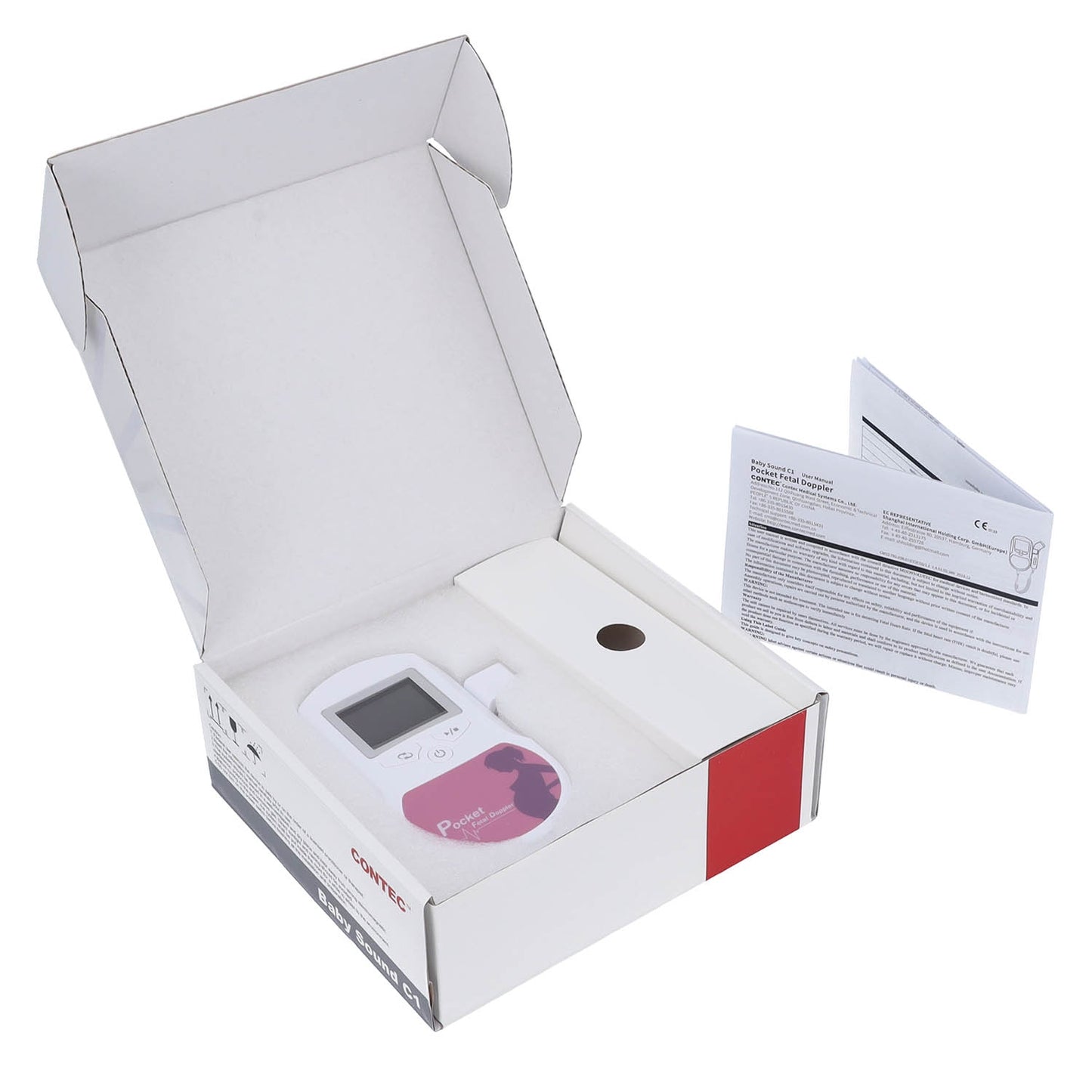

- A hand-held fetal heart rate detection device.
- Measured FHR value and waveform are displayed on the LCD screen.
- With easy and convenient operation, it can be used in hospital, clinic for daily self-check by pregnant woman, realizing early monitoring and care for life.
- Easy to operate
- Magnetic probe, compact design, convenient to use
- Colour display screen
- Digits/Curve display
- Battery level indication
- Auto shutdown after no signal inputting for 60s
- High sensitive 2 Mhz Doppler probe, fetal heart sound can be heard clearly for pregnancy more than 12 weeks
- Two sound output modes: built-in speaker and external headphone
Performance
- Safety classification: internally powered equipment, type CF applied part
- Display: 1.77" LCD screen
- FHR measurement and display range: 50 BPM ~ 240 BPM (BPM: beats per minute)
- Resolution: 1 BPM
- Accuracy: ± 2 BPM
- Rated working voltage: DC3 V
- Battery type: two 1.5V batteries (AA LR6) - NOT SUPPLIED
Probe
- Nominal Frequency: 2.0 MHz
- Working Frequency: 2.0 MHz ± 10%
- Negative Peak Sound Pressure: P_ < 1 MPa
- Output Beam Intensity: Iob < 20 mW/cm2
- Spatial-peak Temporal-average Derived Intensity: Ispta < 100 mW/cm2
- Ultrasonic Output Power: P < 20 mW
- Working Mode: Continuous wave Doppler
- Effective Radiating Area of Transducer: ≤ 208 mm2
- Dimension: 151mm(L) × 96 mm(W) × 33 mm(H)
- Weight: about 207 g(with batteries)
